Every municipal road project manager faces the same dilemma: a horizontal curve needs attention, the budget is tight, and the question on the table is whether a chevron traffic sign array is legally required — or whether a compliant, cost-effective alternative will hold up under scrutiny. The answer is not a simple yes or no.
MUTCD provides a clear framework, but it grants engineers significant discretionary latitude on curves that do not meet specific mandatory thresholds. Understanding exactly where that line sits — and what approved alternatives exist on the other side — is the difference between a defensible engineering decision and an expensive liability exposure.
This guide covers both sides of that line for local government road managers responsible for balancing legal compliance, road safety, and tight capital budgets.

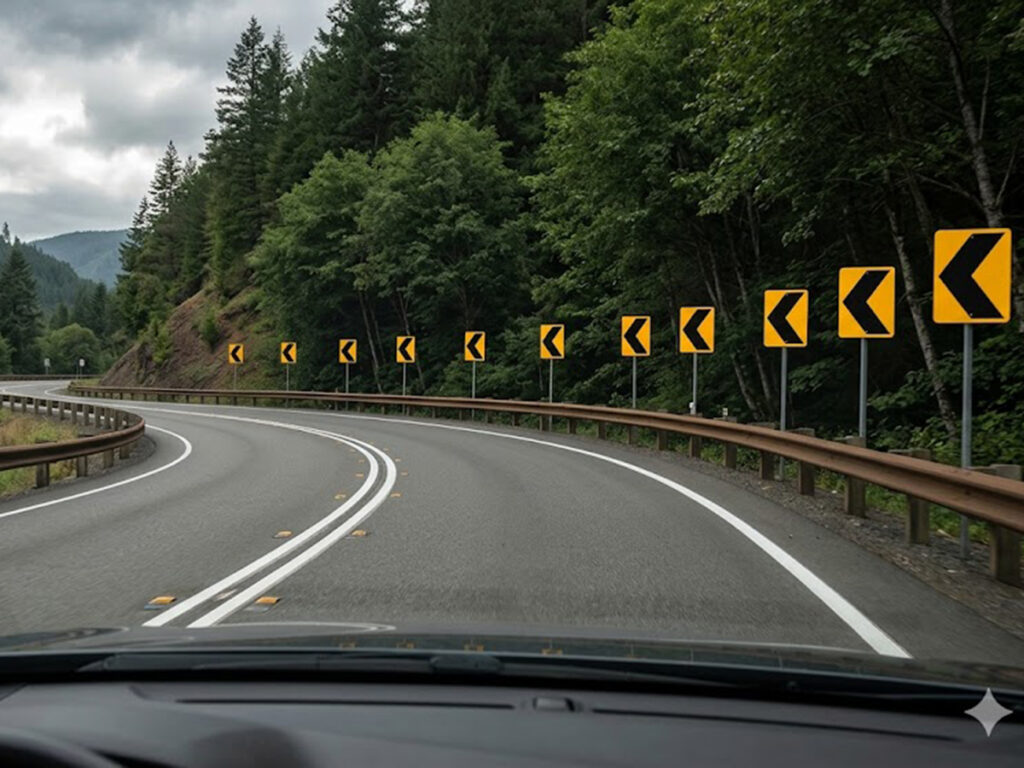

When a Chevron Traffic Sign Goes from Recommended to Required
The Advisory Speed Differential Rule That Triggers Mandatory Delineation
MUTCD establishes a critical threshold that transforms a chevron traffic sign from a recommended treatment to a required one. When the advisory speed on a horizontal curve is 15 mph or more below the posted speed limit, the MUTCD strongly recommends (Should condition) the installation of chevrons or equivalent delineation. While technically categorized as a ‘Should’ standard rather than an absolute ‘Shall’ mandate, departing from this recommendation requires robust, documented engineering justification to withstand liability scrutiny..
Consider a practical example: a rural road posted at 55 mph with a curve carrying a 35 mph advisory speed. That 20 mph gap clears the threshold. A chevron traffic sign array, or an approved engineering equivalent, becomes mandatory at that location.
For the full regulatory text and warrant details, see the dedicated breakdown of MUTCD Section 2C.12 requirements for chevron signs.
Documented Crash History as an Independent Mandate Trigger
Speed differential is not the only trigger. A curve with a documented history of roadway departure crashes creates an independent obligation to install delineation — regardless of the advisory speed calculation. Engineers must treat the crash record as hard evidence that passive geometry is not sufficient.
Municipal project managers should pull crash data from state DOT databases and the Strategic Highway Safety Plan (SHSP) records before making any delineation decision on a flagged curve. If crashes exist in the record and delineation is absent, the legal exposure escalates significantly. The data lives in the record — and so does the liability.
When Chevrons Are Genuinely Optional: The Gentle Curve Exception
Not every curve requires a chevron traffic sign. For gentle curves with adequate sight distance, a minor advisory speed differential below the 15 mph threshold, and high-contrast pavement markings, MUTCD gives engineers real discretionary latitude. On these curves, a standard advance warning sign — such as a W1-2 Curve sign — may constitute a fully compliant treatment on its own.
“Optional” does not mean “undocumented.” An engineer of record must evaluate site-specific conditions and record the rationale for the approach. That documentation is the compliance shield. Without it, the optional status disappears.
The Legal Risk Framework: Why “Optional” Still Requires an Engineering Judgment Call
What Engineering Judgment Actually Means for a Public Works Manager
Engineering judgment is not informal opinion — it is a documented, site-specific professional assessment. A qualified engineer evaluates the curve’s speed, geometry, sight distance, traffic volume, and crash history. The engineer records the findings and the rationale for any treatment decision that deviates from standard practice.
That documentation is the legal protection. Undocumented decisions are precisely where municipalities lose tort cases. A delineation substitution made for budget reasons, without an engineer’s written justification on file, removes the agency’s primary defense in the event of a future crash.
Substitution vs. Supplementation: How the Approach Changes Liability
The liability profile differs meaningfully depending on whether an agency substitutes chevrons entirely or supplements them with additional treatments. Substitution — removing chevron alignment signs and replacing them with another treatment — requires stronger engineering justification and more detailed documentation.
Supplementation — adding delineators, pavement treatments, or beacons to an existing chevron setup — generally carries a lower risk profile. It improves safety outcomes and demonstrates proactive maintenance. Project managers evaluating this decision should understand which category their plan falls into before any procurement decisions are made.
Distinguishing MUTCD-Governed Public Roads from Private Properties
MUTCD compliance requirements apply specifically to roads open to public travel. Private roads, warehouse access routes, and industrial facilities operate under different frameworks with different obligations. Project managers working on non-public assets should review the chevron sign guidance for private roads, warehouses, and industrial sites — the MUTCD-based framework covered in this article does not govern those environments.
Approved Alternative #1: Post-Mounted Delineators and Omni-Directional Post Delineators
Post-mounted delineators (PMDs) are recognized by MUTCD as an approved delineation method for horizontal curves. White delineators mark the right edge; red delineators mark the left. Their retroreflective panels provide continuous roadway edge guidance, with nighttime performance that significantly outperforms standard pavement markings in low-visibility conditions.
According to MUTCD Section 3F.01 and FHWA curve safety guidelines, PMDs function most effectively as a supplement to warning signing on curves. They establish a visible roadway edge corridor that guides drivers through the curve geometry without requiring the full array of overhead chevron panels, providing a crash-reduction benefit recognized in FHWA’s Proven Safety Countermeasures..
Note that PMDs carry their own MUTCD-specified spacing requirements — substituting a chevron traffic sign with delineators does not exempt the installation from placement standards.
Omni-Directional Post Delineators: Advantages for Bidirectional and Multi-Lane Curves
Omni-directional post delineators extend the standard PMD concept by providing 360-degree retroreflective visibility rather than a single-face panel. On bidirectional curves, median-absent sections, or multi-lane roads where drivers approach from varying angles, this full-perimeter reflectivity addresses visibility gaps that standard uni-directional delineators leave open.
State DOTs are increasingly specifying omni-directional post delineators in safety improvement programs, particularly for roadway departure crash reduction on rural two-lane highways. Their wider effective detection angle makes them a measurably stronger nighttime guidance solution in complex curve environments.
Budget and Procurement Considerations for Delineator Programs
On a per-unit cost basis, post-mounted delineators are substantially less expensive than fabricated chevron sign panels. Installation requires no structural post hardware in flexible delineator designs. Maintenance replacement cycles are manageable at scale.
For agencies managing curve delineation across multiple road segments, delineator programs can extend safety improvements across a larger network within the same capital envelope. The trade-off is reduced conspicuity at high approach speeds compared to full chevron arrays — a factor the engineer of record must weigh in the site-specific assessment.
📋 BULK PROCUREMENT REQUEST
Managing a curve delineation project across multiple sites? Request a bulk quote for MUTCD-compliant post-mounted delineators. Our team can help you specify the right product for your curve geometry, speed environment, and volume requirements — with documentation support for your engineering file.
Approved Alternative #2: One-Direction Large Arrow Signs (W1-6) for Abrupt Sight Distance Loss
What the W1-6 Large Arrow Sign Communicates That Chevron Arrays Don’t
The W1-6 One-Direction Large Arrow sign delivers a fundamentally different message than a chevron traffic sign array. Where chevrons provide continuous, incremental alignment guidance through a curve, the W1-6 delivers a single high-contrast directional command at the curve entry point — an emphatic “turn here” rather than a sequential visual guide.
This distinction matters at curves where a driver needs immediate directional information, not a progressive series of panel cues. The W1-6 is optimized for abrupt sight distance loss scenarios where a driver has limited time to process and respond.
Site Conditions That Favor W1-6 Over a Chevron Array
Engineering conditions where W1-6 is the appropriate specification include curves with a short tangent approach, locations where vegetation, terrain, or roadside structures limit advance sight distance, and intersections with sharp turning radii. These are sites where the geometric abruptness of the curve — not just the degree of curvature — creates the primary hazard.
Project managers can self-qualify a candidate site by asking: Does the driver have adequate distance to process a sequence of chevron panels, or does the site demand a single, immediate directive? The answer drives the sign selection.
Using W1-6 in Combination with Advance Warning Signs
W1-6 signs most often operate as part of a layered guidance system. Paired with W1-2 or W1-4 advance warning signs and an advisory speed plaque, the combination creates a sequential alert-and-direct sequence that achieves safety equivalency to chevron arrays at specific curve types.
This combination approach can reduce the total number of sign panels required while maintaining full MUTCD compliance — a meaningful budget consideration for agencies managing high-volume sign maintenance programs.
Approved Alternatives #3 & #4: Pavement-Level Treatments — RPMs and Enhanced Markings
Raised Pavement Markers: Filling the Wet-Night Visibility Gap
Standard pavement markings lose retroreflective performance in wet conditions because the water film submerges the glass beads that generate the reflectivity. Raised pavement markers (RPMs) solve this problem by projecting above the water film, maintaining visibility in the wet-night conditions that account for a disproportionate share of roadway departure crashes.
According to FHWA Roadway Departure Safety data, wet pavement and darkness together create a crash risk significantly elevated above dry daytime conditions. RPMs deployed along horizontal curve edge lines directly address this visibility gap. They function most effectively as supplements to vertical signing rather than standalone delineation treatments.
Enhanced Edge Lines, Wider Markings, and Rumble Strips
Enhanced pavement markings extend the safety value of whatever vertical signing is in place. Wider edge lines (6 inches versus the standard 4 inches), skip-to-solid marking transitions on the approach to curves, and transverse rumble strips all contribute measurable safety improvements at modest cost.
FHWA research on shoulder rumble strips documents a roughly 50% reduction in roadway departure crashes at treatment locations on two-lane rural highways, making them one of the most cost-effective curve safety investments available to municipal programs. (source: https://highways.dot.gov/safety/rwd/keep-vehicles-road/rumble-strips/decision-support-guide-installation-shoulder-and-2)
High-Friction Surface Treatments (HFST) for Friction-Deficit Curves
At curves where skid resistance is the primary crash causation factor — wet pavement, polished aggregate, grade-combined curvature — High-Friction Surface Treatment (HFST) targets the root cause rather than improving the warning system around it. FHWA’s HFST program documents crash reductions averaging 48% at horizontal curve locations (source: https://highways.dot.gov/safety/proven-safety-countermeasures/pavement-friction-management).
HFST qualifies for Highway Safety Improvement Program (HSIP) funding, which allows agencies to pursue the treatment within federal safety grant cycles rather than local capital budgets.
Approved Alternative #5: Flashing Beacons on Advance Warning Signs
When MUTCD Guidance Supports Adding a Beacon to a Curve Warning Sign
Flashing beacons address the attention failure mode — the scenario where a driver sees a standard static sign but does not register it as urgent. MUTCD permits flashing beacons on curve warning signs at locations with recurring crash histories or where standard signing has demonstrably failed to change driver behavior.
Vehicle-activated warning systems (speed-triggered beacons) go a step further by displaying a warning only when an approaching vehicle exceeds the advisory speed, creating a targeted alert precisely when the risk is highest. These systems are increasingly specified in state safety improvement programs for high-severity curve locations.
Solar vs. Hardwired Beacons: Procurement Tradeoffs for Remote Curves
Solar beacons carry lower installation costs at remote locations where electrical infrastructure is absent. Procurement specifications should require a minimum 5-day battery backup rating and a charge cycle certification suitable for the project’s solar resource zone. Hardwired beacons provide more reliable operation in low-sunlight climates but require electrical contracting that can double the total installation cost.
| Feature | Solar Beacon | Hardwired Beacon |
| Installation Cost | Lower (no electrical) | Higher (electrical required) |
| Remote Locations | Viable | Limited by power access |
| Reliability (Low Sun) | Reduced | Consistent |
| Maintenance | Battery/panel cycles | Electrical component inspection |
| Best Use Case | Rural / budget-limited | High-traffic, urban curves |
Source: FHWA Curve Safety Countermeasures Reference
Beacons as a Documented Interim Measure During Curve Reconstruction Planning
When a curve is identified for future geometric redesign, but reconstruction funding sits in a later capital cycle, a flashing beacon installation on the advance warning sign constitutes a legitimate, documentable interim safety action. The engineer of record records the interim measure and its rationale.
This approach protects the municipality legally while the longer-term fix is programmed. It demonstrates that the agency identified the hazard, responded with the best available tool within its current budget, and has a capital plan for permanent remediation — exactly the documented record that limits liability exposure.
Choosing the Right Alternative: A Decision Framework for Municipal Project Managers
The Four-Factor Site Evaluation
Every delineation decision on a horizontal curve should run through four factors before a product is specified:
- Advisory speed differential vs. posted limit — does the gap reach the 15 mph mandatory threshold?
- Crash history — does the curve appear in the roadway departure crash record?
- Sight distance — does the driver have adequate advance visibility to process the selected treatment?
- Budget and maintenance capacity — what capital and ongoing maintenance resources does the agency have available?
| Condition | Recommended Treatment | Compliance Status |
| ≥15 mph speed differential | Chevron traffic sign array or equivalent | Recommended (Should) |
| Crash history present | Chevron traffic sign + delineators or beacons | Highly Recommended / Engineering Standard |
| <15 mph differential, adequate sight distance | PMDs, W1-6, or enhanced markings | Discretionary (with documentation) |
| Friction-deficit curve | HFST + advance warning signs | Discretionary (with documentation) |
| Remote curve, no power | Solar beacon on advance sign + PMDs | Discretionary (with documentation) |
Source: MUTCD 11th Edition, FHWA Roadway Departure Safety
Delineators vs. Chevron Signs: When Each Treatment Wins
Delineators outperform chevrons in three specific contexts: long gradual curves where continuous edge guidance is more effective than a series of overhead panel cues, budget-constrained programs where per-unit cost and installation simplicity matter, and maintenance-intensive networks where frequent replacement needs to stay manageable.
Chevron traffic signs outperform delineators at high approach speeds, on curves with a documented crash history, and at locations with a high percentage of heavy vehicle traffic where elevated mounting height improves conspicuity. The chevron traffic sign remains the highest-conspicuity delineation option available — that conspicuity premium is what justifies its cost in high-risk environments.
Many effective curve treatments combine both: chevron alignment signs on the highest-risk entry and mid-curve panels, supplemented by delineators through the lower-risk exit arc. That layered approach maximizes safety performance while managing total installation cost.
| Selection Factor | Delineators (Post-Mounted) | Chevron Alignment Signs (W1-8) |
| Primary Function | Continuous edge guidance and lane definition | High-visibility directional cues for curve severity |
| Visual Impact | Subtle, ground-level visual path following | High-conspicuity; elevated mounting for impact |
| Cost & Installation | Low per-unit cost; rapid, simple installation | Higher investment; requires sign post/panel setup |
| Best Infrastructure Context | Long, gradual curves; low-risk rural segments | Sharp curves; locations with documented crash history |
| Traffic Conditions | Standard passenger vehicle flow; moderate speeds | High approach speeds; heavy commercial vehicle traffic |
Documentation Checklist Before Substituting Chevrons
The following items should be on file before any chevron traffic sign substitution decision is finalized:
- Engineering study or documented field review with date and reviewer credentials
- Crash data pulled from the state DOT database covering a minimum of 5 years
- Sight distance measurement record for the candidate curve
- Advisory speed calculation or reference to existing sign survey
- Engineer-of-record sign-off on the selected treatment and rationale
- Agency approval documentation where required by local policy
For the complete standards reference covering chevron sign specifications, placement requirements, and MUTCD compliance across all curve types, see the comprehensive chevron sign standards and placement specifications guide.
Frequently Asked Questions: Chevron Traffic Sign Requirements and Alternatives
Are chevron traffic signs legally required on all horizontal curves?
No. A chevron traffic sign is not universally required on every horizontal curve. Standard delineation treatment is heavily emphasized when the advisory speed is 15 mph or more below the posted limit, or when a crash history is documented. Under MUTCD 11th Edition, this is primarily a ‘Should’ (recommended) application, meaning it represents standard engineering practice that should be followed unless a formal engineering study proves an alternative is safer or equivalent.
What can be used instead of a chevron sign on a horizontal curve?
MUTCD-recognized alternatives include post-mounted delineators (PMDs), omni-directional post delineators, W1-6 One-Direction Large Arrow signs, raised pavement markers (RPMs), enhanced edge line markings with rumble strips, High-Friction Surface Treatments, and flashing beacons on advance warning signs. The appropriate choice depends on the site’s speed differential, crash history, sight distance, and budget profile.
What is the difference between delineators and chevron signs?
A chevron traffic sign is an active directional sign mounted at elevation that commands drivers through a curve Post-mounted delineators are passive retroreflective markers that define the road edge without providing directional commands. Chevrons deliver higher conspicuity at speed; delineators provide continuous, lower-cost guidance. Many effective installations combine both.
Can omni-directional post delineators replace chevron signs?
On curves where the mandatory triggers are not met, yes — with documented engineering judgment supporting the decision. On curves that meet the 15 mph speed differential threshold or carry a crash history, omni-directional post delineators typically serve as supplements to the chevron traffic sign rather than full replacements.
Do chevron sign alternatives still need to follow MUTCD spacing rules?
Yes. Every approved alternative carries its own MUTCD-specified placement and spacing requirements. Substituting a chevron traffic sign with delineators, RPMs, or arrow signs does not remove the obligation to correctly space and position the selected treatment. Non-compliant spacing on an alternative treatment creates the same liability exposure as a missing sign.
What is a municipality’s liability exposure if chevrons are omitted on a flagged curve?
The exposure is significant if the curve meets mandatory triggers and delineation is absent. Documented engineering judgment supporting an alternative treatment substantially reduces that exposure. The documentation — the engineer’s assessment, the crash data review, the sight distance record, and the sign-off — is the legal protection. Agencies that install an alternative without that paper trail carry the same risk profile as agencies that install nothing.
