When planning traffic sign projects, you need accurate numbers for material weight. 에이 standard 4×8 sheet of aluminum at 1/8 인치 (0.125″ ≈ 3.2 mm) thickness weighs about 56.16 파운드 (25.47 킬로그램). Knowing these values helps you estimate shipping costs, labor requirements, and installation planning.
| 두께 | 무게 (LBS) | 무게 (kg) |
|---|---|---|
| 1/8″ | 56.16 | 25.47 |
에 따르면 FHWA MUTCD guidelines 그리고 ASTM B209 specifications, proper weight and thickness selection is essential for safety, 규정 준수, and cost-effective project delivery.
4×8 Aluminum Sheet Weight Table

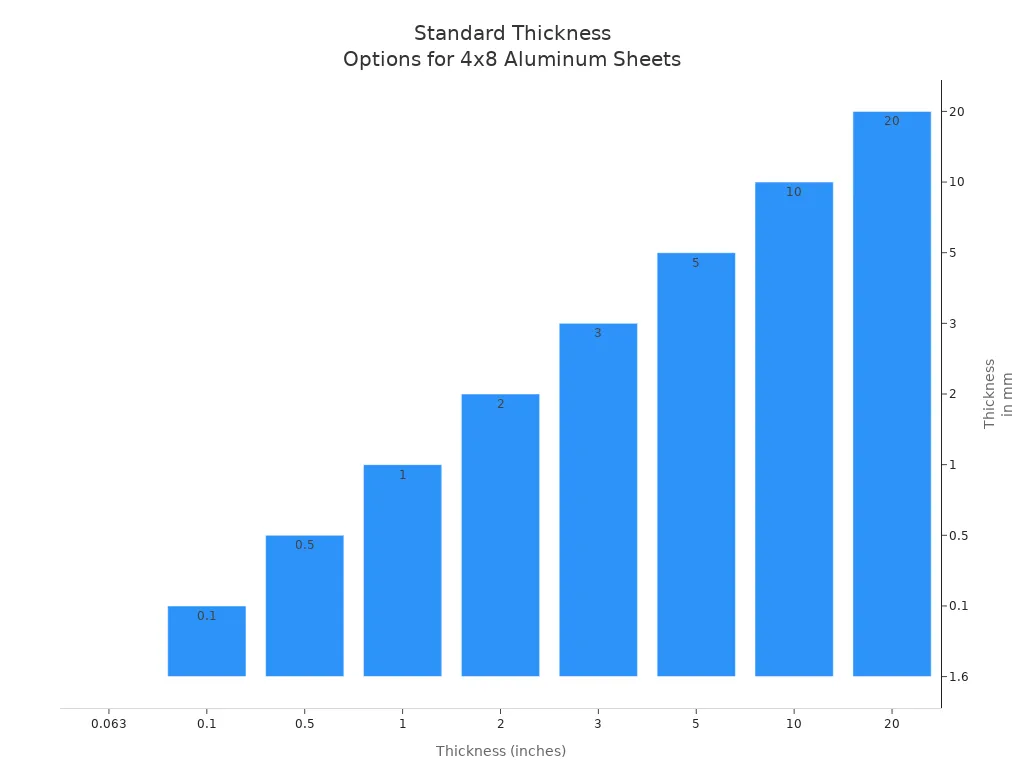

4×8 Sheet of Aluminum: 일반적인 두께
In the signage industry, the most common aluminum sheet thicknesses are:
| 두께 (인치) | 두께 (mm) | 전형적인 사용 |
|---|---|---|
| .040″ | 1.0 mm | Temporary or private property signs (not MUTCD-compliant) |
| .063″ | 1.6 mm | 경량 표지판, 주차장, short-term use |
| .080″ | 2.0 mm | MUTCD-compliant regulatory and parking signs |
| .125″ | 3.2 mm | Large highway guide signs, high-wind zones |
| 1/4″ | 6.4 mm | Specialized heavy-duty installations |
👉 메모: Thicknesses greater than .125″ are rarely specified for road signage and are generally reserved for structural or specialty applications.

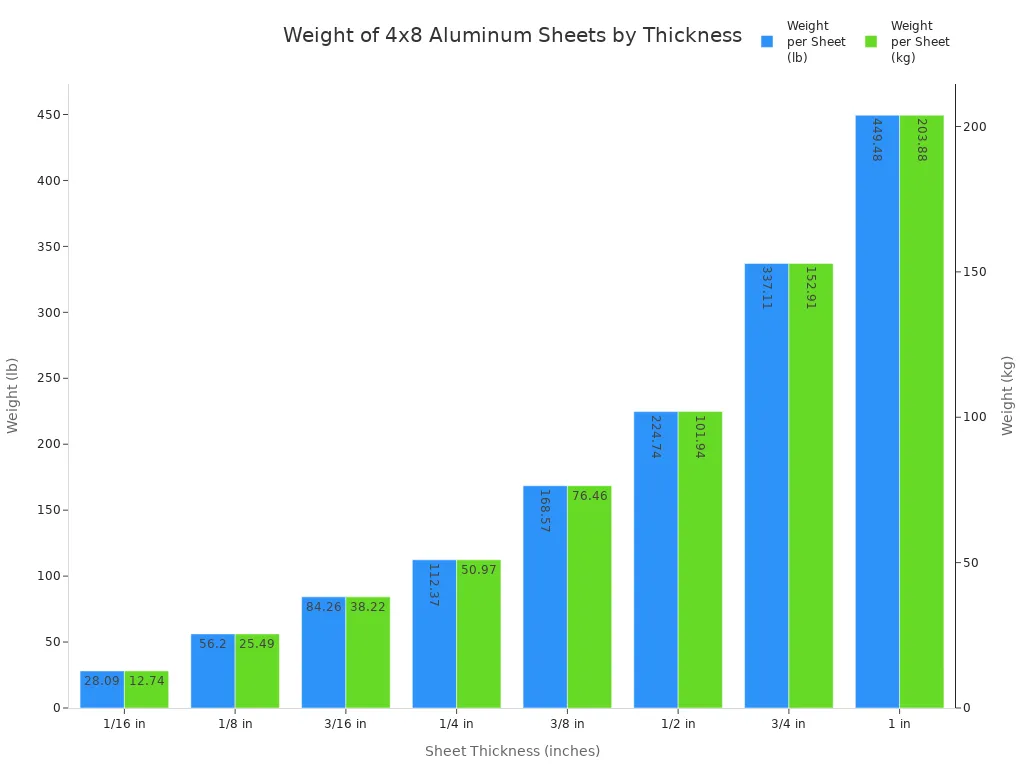

평방 피트 당 체중
The following table shows the weight of standard 4×8 aluminum sheets at various thicknesses. Data is based on ASTM B209 density (0.0975 lb/in³).
| 두께 (인치) | Weight of 4×8 Sheet (LB) | 무게 (kg) | Weight per sq ft (lb/sq ft) |
|---|---|---|---|
| .040″ | 18.7 | 8.5 | 0.59 |
| .063″ | 29.5 | 13.4 | 0.93 |
| .080″ | 37.6 | 17.1 | 1.18 |
| .125″ | 56.2 | 25.5 | 1.77 |
| 1/4″ | 112.4 | 51.0 | 3.52 |
팁: To calculate the weight of any sign, multiply the weight per square foot 에 의해 total sign area.
예: 에이 2′×2′ sign at .080″ thickness = 4 sq ft × 1.18 lb/sq ft = 4.7 LBS.
4×8 알루미늄 시트: Weight Calculation
Weight Formula for Aluminum Sheets
You can calculate the weight of any aluminum sheet with a simple formula used across the signage industry:
Weight = Length × Width × Thickness × Density
- Length × Width: dimensions of the sheet (신장)
- 두께: material thickness (신장)
- Density of aluminum: ~0.0975 lb/in³ (ASTM B209 standard value)
👉 예: A 24″ × 36″ sign at .080″ thickness weighs:
24 × 36 × 0.080 × 0.0975 ≈ 5.3 LBS (2.4 kg).
This formula is especially helpful when ordering custom sizes or estimating freight loads.
Step-by-Step Weight Calculation
To verify, here’s how to calculate the weight of a 4×8 sheet at 1/8″ thickness:
무게: Volume × Density = 576 × 0.0975 ≈ 56.16 LBS
Density of aluminum: 0.0975 lb/in³
Convert dimensions to inches: 4′×8′ = 48″ × 96″
영역: 48 × 96 = 4,608 in²
Volume: Area × Thickness = 4,608 × 0.125 = 576 in³
This aligns with standard supplier data.
Why Weight Matters for Traffic Signage
운송 & 설치
When you plan a traffic sign project, you must think about the weight of aluminum sheets. The weight changes how you ship and install them. Heavy sheets cost more to move. Shipping companies charge by weight, so knowing the weight helps you avoid extra costs. You need to be careful with heavy sheets. More weight means you might need more workers or special tools to lift and put up the signs safely.
Here is a quick look at how weight changes transportation costs:
| 요인 | Impact on Transportation Costs |
|---|---|
| Weight Calculation | Needed to figure out shipping costs |
| Safe Handling | Heavy sheets need more care when moving |
| 비용 추정 | Suppliers may charge more for heavier materials |
| Project Planning | Total weight changes how you plan and schedule |
선택 aluminum helps the environment. 알루미늄은 강철보다 무게가 가볍습니다., so trucks use less fuel and make less pollution. Even a small drop in weight can save money and lower pollution. 알루미늄 징후 last a long time and can be recycled many times, so less trash goes to landfills.
- 알루미늄은 강철보다 가볍다., so trucks use less fuel.
- Cutting weight by 10% can save 6-8% on fuel.
- Aluminum can be recycled and stays strong.
- Aluminum signs last longer and do not need to be replaced often.
When you put up signs, the weight decides what hardware you need. Lighter sheets can use simple mounting, like VHB tape or angle aluminum. Heavy sheets may need lead anchors or masonry screws for extra support.
| 설치 방법 | 설명 |
|---|---|
| VHB Tape | Stick the sign to the frame with VHB tape so screws do not show. |
| Lead Anchors | Put lead anchors in the corners and add supports in the middle. |
| Masonry Screws | Use masonry screws with washers, painted to match the sign. |
| Angle Aluminum | For light signs, use angle aluminum glued with countersunk screws. |
내구성 & 비용
Thicker sheets provide greater 장수, wind resistance, and vandal resistance.
| 두께 | 비용 영향 | 내구성 |
|---|---|---|
| .040″ | Lower upfront cost | 단기, not MUTCD-compliant |
| .080″ | Standard cost | mutcd-compliant, 10+ years outdoor life |
| .125″ | 더 높은 비용 | Maximum strength for highways and coastal environments |
👉 Case in Point: Florida DOT specifies .125″ 5052-H38 aluminum for large guide signs due to coastal wind and salt exposure, while Texas DOT commonly uses .080″ 규제 표지판.
If you want to save money now, you might pick a thin sheet. If you want your sign to last longer and handle tough weather, a thick sheet is better. You should think about your budget and how strong you need your sign to be. By knowing the weight and thickness, you can make smart choices for your traffic sign project.

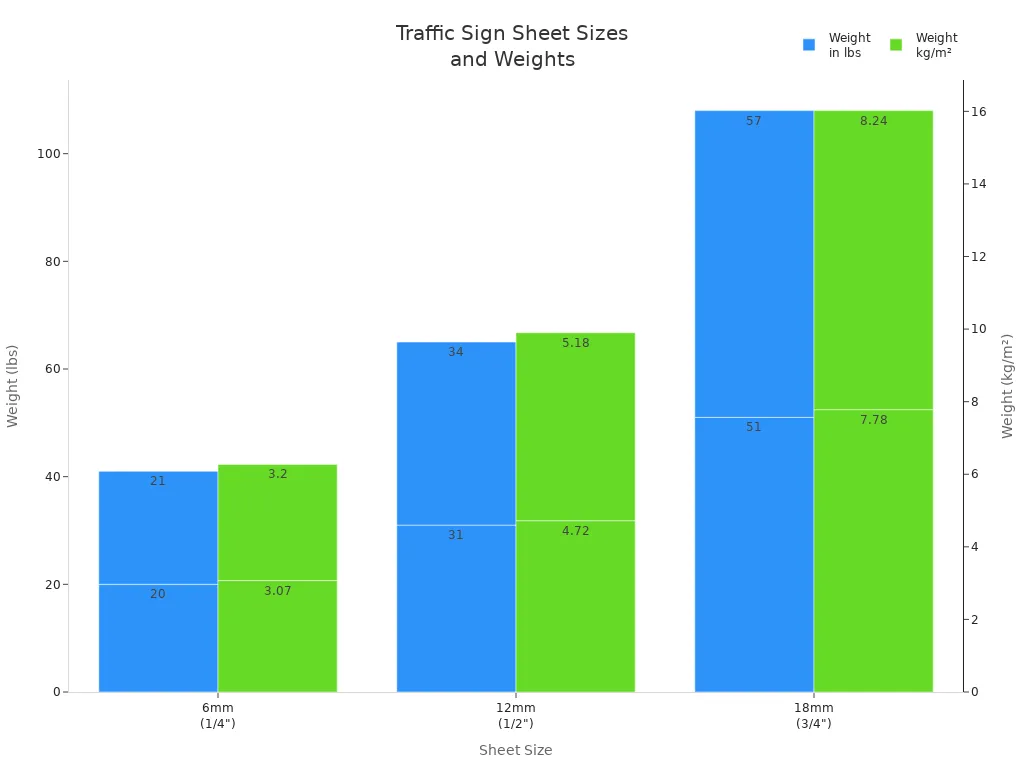

Other Sheet Sizes for Signage
Not every project requires a full 4×8 sheet. Common cut sizes include 18″ × 24 ″, 24″ × 36 ″, 및 24 ″ × 48 ″, which are lighter and easier to install.
| 시트 크기 | 두께 | 무게 (LBS) | 전형적인 사용 |
|---|---|---|---|
| 18″ × 24 ″ | .080″ | 3.5 | 주차 표지판 |
| 24″ × 36 ″ | .080″ | 5.3 | Street name signs |
| 24″×48″ | .080″ | 7.1 | 규제 징후 |
팁: Standardizing sign sizes reduces costs and simplifies storage.
Choosing the Right Alloy
Different aluminum alloys affect both weight and performance:
| 합금 | 밀도 (g/cm³) | 주요 속성 | 가장 좋습니다 |
|---|---|---|---|
| 5052-H38 | 2.68 | High corrosion resistance | Coastal/highway signs |
| 6061-T6 | 2.70 | 고강도, less formable | Overhead/structural signs |
| 3003-H18 | 2.73 | 비용 효율적입니다, 내구성이 좋은 | Street & 경고 신호 |
👉 메모: Most traffic signs in the U.S. 사용 5052-H38 or 6061-T6, in compliance with ASTM B209.
결론
아는 것 weight of a 4×8 aluminum sheet at different thicknesses is essential for estimating shipping, 설치, 그리고 규정 준수. Whether you are building parking signs, highway guide signs, or municipal signage, choosing the right thickness and alloy ensures safety, 내구성, and cost efficiency.
Optraffic에서, we supply 4×8 aluminum sheets manufactured to ASTM B209 and MUTCD standards, with options from .040″ to .125″ thickness. Our bulk ordering program helps contractors, 지방 자치 단체, and exporters reduce costs while maintaining quality. Explore our aluminum sheet products.
FAQ
What is the MUTCD standard thickness for traffic signs?
Most regulatory and parking signs require .080″ 알루미늄. Large guide signs may need .125″. Thinner sheets like .040″ are used only for temporary or private property signs.
How do you calculate the weight of any aluminum sheet?
Use the formula: Length × Width × Thickness × Density (0.0975 lb/in³). 예를 들어, a 24″×36″ sign at .080″ weighs ~5.3 lbs.
Does aluminum weight affect transportation costs compared to steel?
예. Aluminum weighs about one-third of steel, lowering freight costs and fuel consumption by up to 8% for every 10% weight reduction.
Can you use aluminum composite panels instead of solid sheets?
예. 알루미늄 복합 재료 (ACM) panels weigh less than solid aluminum and are easier to install, though MUTCD may still require solid sheets for certain regulatory signs.
